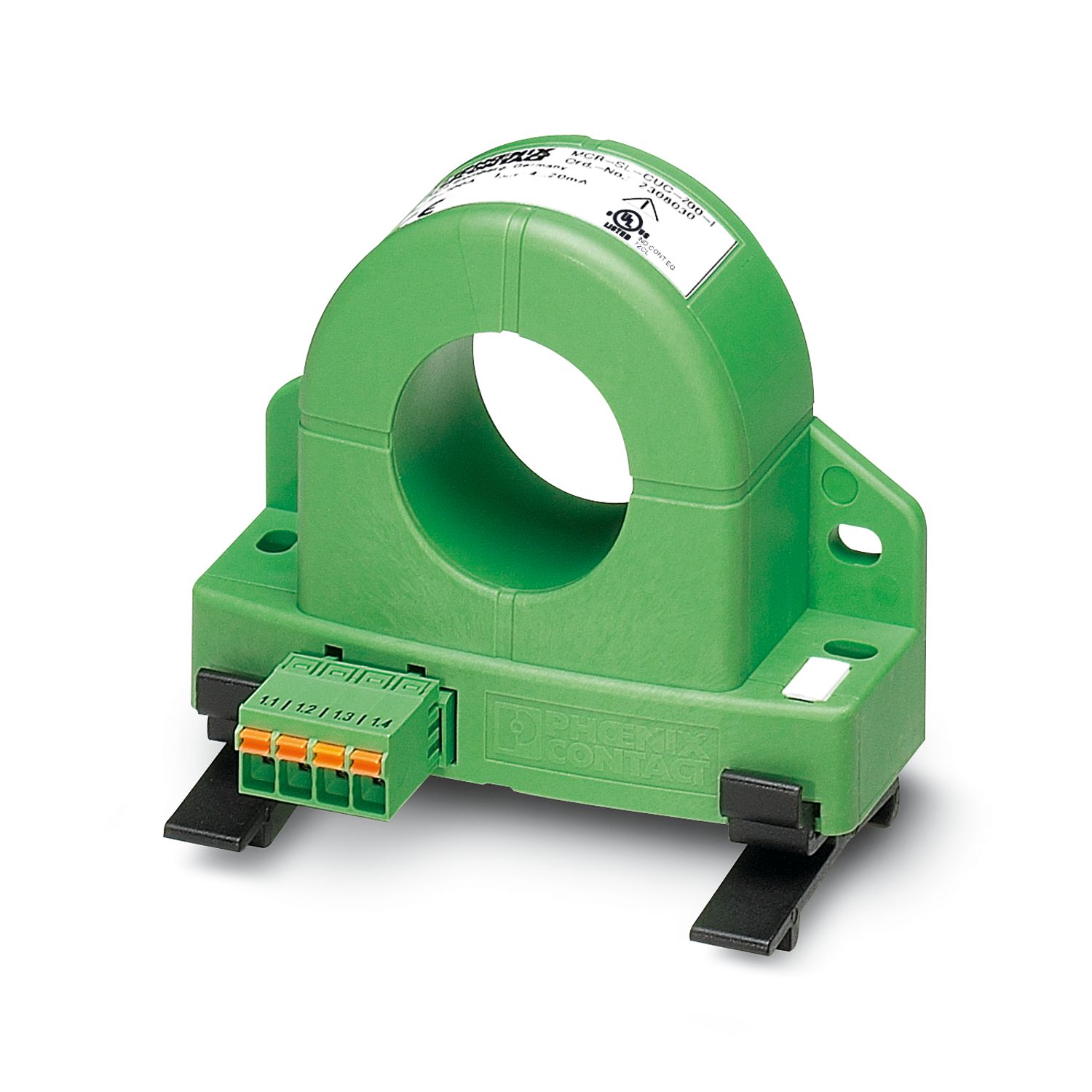

Phoenix MCR-SL-CUC-200-I-universal transmitter 2308030, universal current transmitter, used to measure AC, DC and distortion current, 0... 200A input current, 4... 20mA output
Product Type
Current transmitter
insulation characteristics
Overvoltage Category
III
pollution level
2
Electrical characteristics
Linearity Error
<± 1% (from end of range)
rated conditions
1W
step response (10-90%)
150 ms
temperature coefficient, typical
0.02 %/K (0°C ... 60 °C)
0.04 %/K (-40°C ... 65 °C)
Maximum transmission error
<± 1% (of terminal value)
Rated insulation voltage
300V AC
electrically isolated input/output
Test Voltage
3.5 kV AC (50 Hz, 60 s)
galvanically isolated input/power supply
Test Voltage
3.5 kV AC (50 Hz, 60 s)
Overview
Accuracy
1
power supply
Rated supply voltage
24V DC
Supply Voltage Range
20V DC ... 30V DC
Maximum current consumption
(30 + IOUT ) mA
power consumption
1.65W
input data
measurement
Input Number
1
Input current range
0 A AC/DC ... 200 A AC/DC
Overload
3 x IIN
Frequency measurement range
20Hz ... 6000Hz (0 Hz)
Curve Type
AC, DC, or distorted current
current transformer
Rated frequency: Standard converter
20Hz ... 6000Hz
Rated primary current Isn
200 A
Accuracy
1
Output Data
signals: current
current output signal
4 mA ... 20 mA
Maximum current output signal
< 25 mA
load/output load current output
< 300 Ω
connection data
Connection Mode
in-line connection
stripping length
10mm
Rigid conductor cross section
0.25 mm² ... 2.5 mm²
Flexible Wire Cross Section
0.2 mm² ... 2.5 mm²
Connectable Guide Cross Section AWG
24 ... 12
Connection Mode
perforated connection
Dimensions
Product Size
width
90mm
height
33.8mm
depth
85mm
Round wire
diameter
32mm
Material Specifications
color
Green (RAL 6021)
Shell Material
Frianyl B63 V0 GV30
