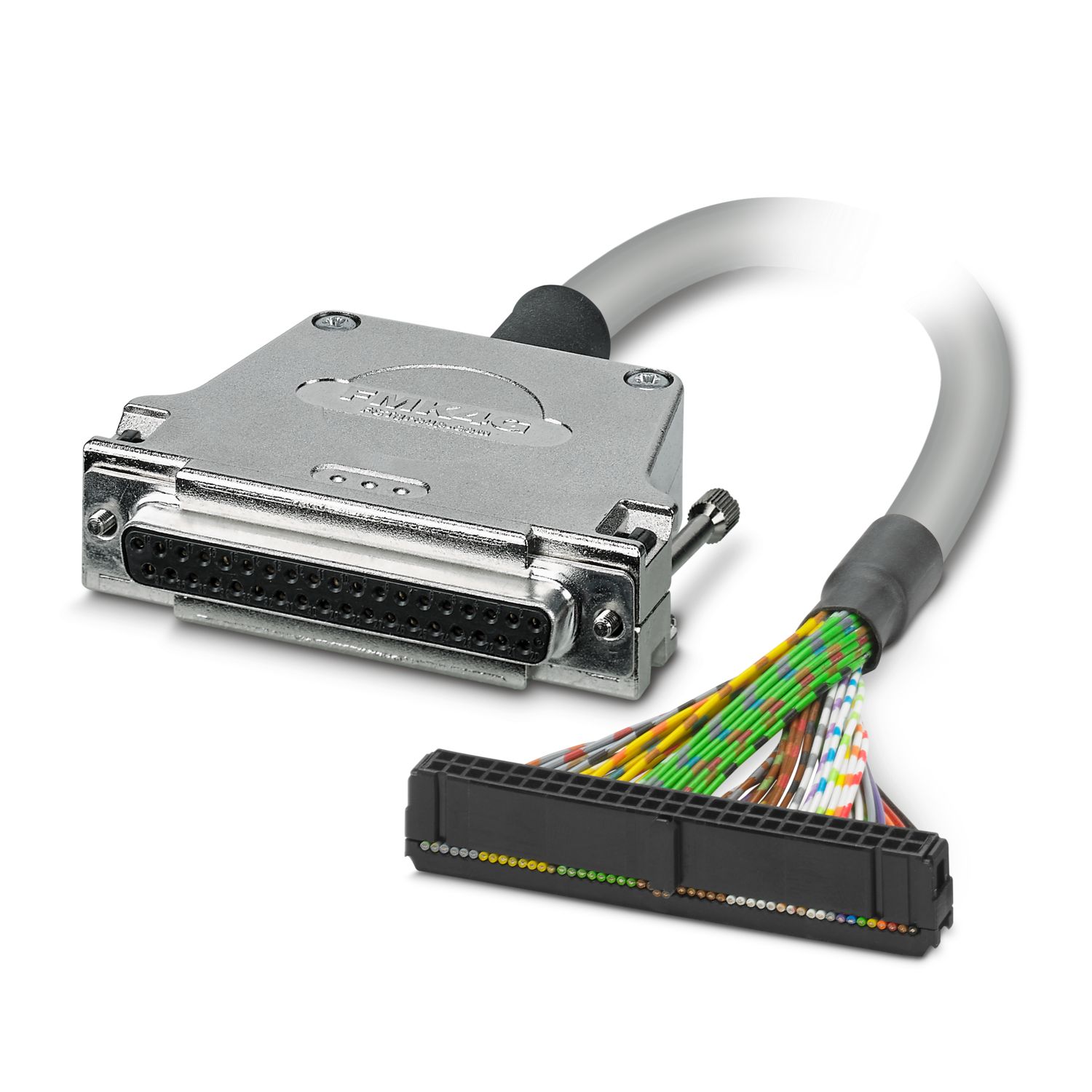

Phoenix CABLE-D37F/FLK50/4,0M/ETHA-cable 1222442, round system cable; Controller: Siemens SIMATIC® ET 200SP HA; Connection 1: D-SUB hole socket board (1x 37-position); Connection 2: IDC/FLK hole connector (1x 50-position); Cable length: 4 m
| Product Type |
System Cable |
| environmental conditions |
| protection level |
IP00 |
| protection level (installation position) |
≥ IP54 (installation position) |
| Ambient temperature (operating) (fixed installation) |
-40°C ... 70°C (fixed installation) |
| ambient temperature (operating) (movable installation) |
-10°C ... 70°C (movable installation) |
| ambient temperature (storage/transport) |
-40°C ... 80°C |
| elevation |
≤ 2000 m |
| Nominal operating voltage (AC) |
≤ 30V AC |
| Nominal operating voltage (DC) |
≤ 60V DC |
| Rated operating mode |
100% Eligible |
| current (per path, 50°C) |
≤ 1 A (expanded, see attenuation) |
| current (per path, 70°C) |
≤ 0.6 A (expanded, see attenuation) |
| Supported Controller SIEMENS ET 200SP HA |
| applicable terminal |
6DL1193-6TP00-0BH1 |
| 6DL1193-6TP00-0DH1 |
| 6DL1193-6TP00-0BM1 |
| 6DL1193-6TP00-0DM1 |
| the right I/O module |
6DL1131-6BL00-0PH1 (Terminal Block H1/M1) |
| 6DL1132-6BL00-0PH1 (Terminal Block H1/M1) |
| Cable Length |
4 m |
| 50X0.14 [PVC] |
| UL AWM |
2464/1061 |
| Bits |
50 |
| Shielding |
None |
| Cable Type |
50X0.14 [PVC] |
| Wire Model |
Circular System Cable |
| wire structure signal line |
7x 0.16mm |
| AWG, signal wire |
26 |
| Wire Cross Section |
50x 0.14 mm² |
| wire diameter, including insulation |
1 mm ± 0.03mm |
| Cable outer diameter |
10.30mm ± 0.4mm |
| outer sheath, material |
semi-rigid PVC |
| outer sheath, color |
Grey |
| Wire Material |
tinned copper stranded wire |
| Cable resistance |
≤ 145 Ω/km (20 °C) |
| insulation resistance |
≥ 20 MΩ*km (20 °C) |
| minimum bending radius, fixed mounting |
86mm |
| minimum bending radius, mobile installation |
161mm |
| Dynamic Load Capacity (Bending) |
: 5000 (radius ≥ 15x outer diameter) |
| Halogen-free |
No |
| flame retardant |
IEC 60332-1-2 (bare cable) |
| VDE 0842, Part 332-1-2 (Bare cables) |
| IEC 60332-3-22 (bare cable) |
| UL VW-1 |
| CSA FT-1 |
| oil resistance |
Resistance to occasional welding chip spatter (bare cable) |
| Cable Type |
cables for connecting modules |
