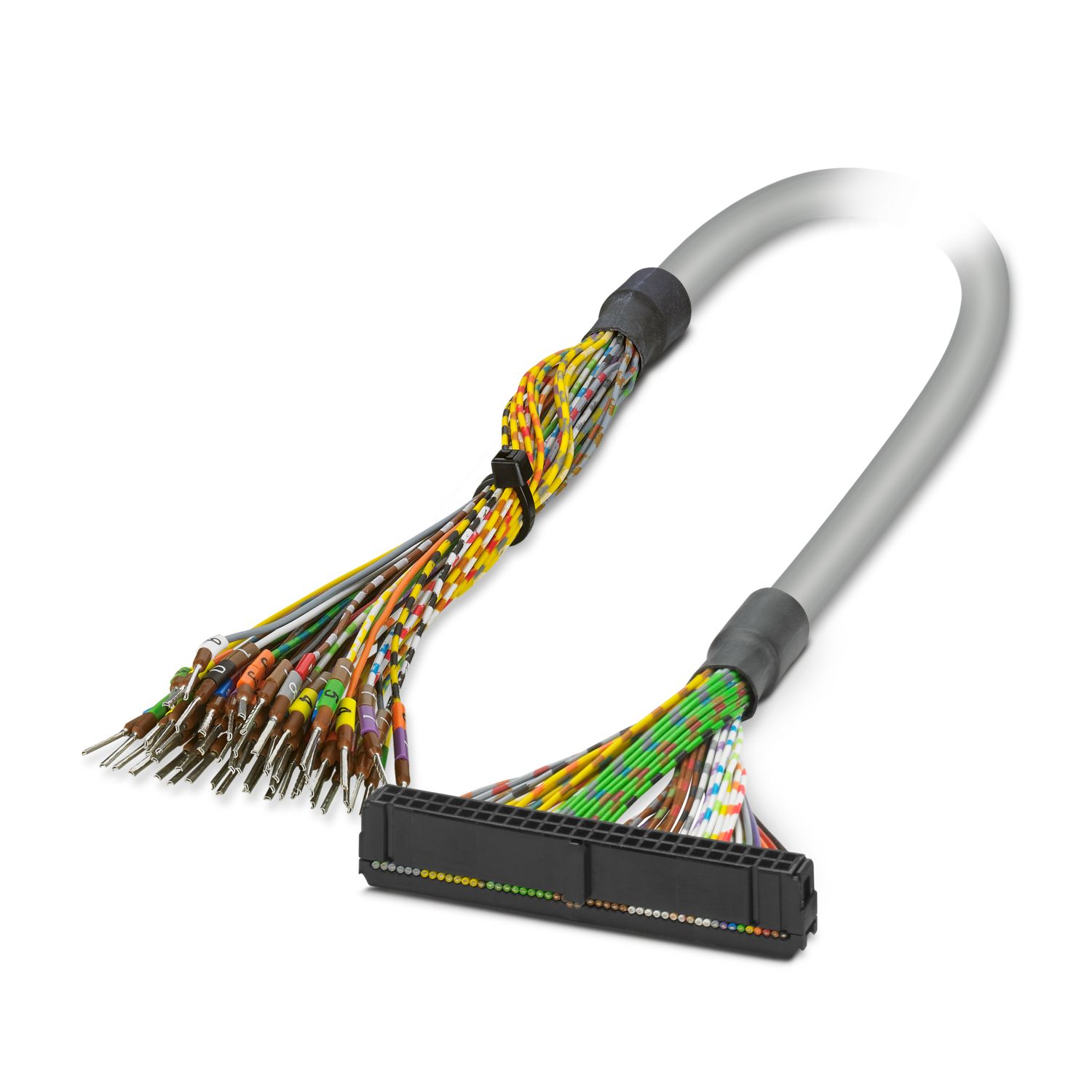

Phoenix CABLE-FLK50/OE/0,14/ 200-cable 2305376, round system cable; connection 1: single wire (50-position) (cable marked and equipped with sleeve); connection 2: IDC/FLK hole connector (1x 50-position); cable length: 2 m
| Product Type |
System Cable |
| environmental conditions |
| protection level |
IP00 |
| protection level (installation position) |
≥ IP54 (installation position) |
| Ambient temperature (operating) (fixed installation) |
-40°C ... 70°C (fixed installation) |
| ambient temperature (operating) (movable installation) |
-10°C ... 70°C (movable installation) |
| ambient temperature (storage/transport) |
-40°C ... 80°C |
| elevation |
≤ 2000 m |
| Nominal operating voltage (AC) |
≤ 30V AC |
| Nominal operating voltage (DC) |
≤ 60V DC |
| Rated operating mode |
100% Eligible |
| current (per path, 50°C) |
≤ 1 A (expanded, see attenuation) |
| current (per path, 70°C) |
≤ 0.6 A (expanded, see attenuation) |
| Cable Length |
2 m |
| 50X0.14 [PVC] |
| UL AWM |
2464/1061 |
| Bits |
50 |
| Shielding |
None |
| Cable Type |
50X0.14 [PVC] |
| Wire Model |
Circular system cable |
| wire structure signal line |
7x 0.16mm |
| AWG, signal wire |
26 |
| Wire Cross Section |
50x 0.14 mm² |
| wire diameter, including insulation |
1 mm ± 0.03mm |
| Cable outer diameter |
10.30mm ± 0.4mm |
| outer sheath, material |
semi-rigid PVC |
| outer sheath, color |
Grey |
| Wire Material |
tinned copper stranded wire |
| cable resistance |
≤ 145 Ω/km (20 °C) |
| insulation resistance |
≥ 20 MΩ*km (20 °C) |
| minimum bending radius, fixed mounting |
86mm |
| minimum bending radius, mobile installation |
161mm |
| Dynamic Load Capacity (Bending) |
: 5000 (radius ≥ 15x outer diameter) |
| Halogen-free |
No |
| flame retardant |
IEC 60332-1-2 (bare cable) |
| VDE 0842, Part 332-1-2 (Bare cables) |
| IEC 60332-3-22 (bare cable) |
| UL VW-1 |
| CSA FT-1 |
| oil resistance |
Resistance to occasional welding chip spatter (bare cable) |
| Cable Type |
cables for connecting modules |
| color coding: single line |
| Black |
IDC/FLK50 (1) = () |
| Brown |
IDC/FLK50 (2) = () |
| Red |
IDC/FLK50 (3) = () |
| Orange |
IDC/FLK50 (4) = () |
| yellow |
IDC/FLK50 (5) = () |
| Green |
IDC/FLK50 (6) = () |
| Blue |
IDC/FLK50 (7) = () |
| purple |
IDC/FLK50 (8) = () |
| Grey |
IDC/FLK50 (9) = () |
| White |
IDC/FLK50 (10) = () |
| White-Black |
IDC/FLK50 (11) = () |
| White-Brown |
IDC/FLK50 (12) = () |
| White-Red |
IDC/FLK50 (13) = () |
| White-Orange |
IDC/FLK50 (14) = () |
| White-Yellow |
IDC/FLK50 (15) = () |
| White-Green |
IDC/FLK50 (16) = () |
| White-Blue |
IDC/FLK50 (17) = () |
| White-Purple |
IDC/FLK50 (18) = () |
| white-gray |
IDC/FLK50 (19) = () |
| Brown-Black |
IDC/FLK50 (20) = () |
| Brown-Red |
IDC/FLK50 (21) = () |
| Brown-Orange |
IDC/FLK50 (22) = () |
| Brown-Yellow |
IDC/FLK50 (23) = () |
| Brown-Green |
IDC/FLK50 (24) = () |
| Brown-Blue |
IDC/FLK50 (25) = () |
| Brown-Purple |
IDC/FLK50 (26) = () |
| Brown-Grey |
IDC/FLK50 (27) = () |
| Brown-White |
IDC/FLK50 (28) = () |
| Green-Black |
IDC/FLK50 (29) = () |
| Green-Brown |
IDC/FLK50 (30) = () |
| Green-Red |
IDC/FLK50 (31) = () |
| Green-Orange |
IDC/FLK50 (32) = () |
| Green-Blue |
IDC/FLK50 (33) = () |
| Green-Purple |
IDC/FLK50 (34) = () |
| Green-Grey |
IDC/FLK50 (35) = () |
| Green-White |
IDC/FLK50 (36) = () |
| yellow-black |
IDC/FLK50 (37) = () |
| yellow-brown |
IDC/FLK50 (38) = () |
| yellow-red |
IDC/FLK50 (39) = () |
| yellow-orange |
IDC/FLK50 (40) = () |
| yellow-blue |
IDC/FLK50 (41) = () |
| yellow-purple |
IDC/FLK50 (42) = () |
| yellow-gray |
IDC/FLK50 (43) = () |
| yellow-white |
IDC/FLK50 (44) = () |
| Grey-Black |
IDC/FLK50 (45) = () |
| Grey-Brown |
IDC/FLK50 (46) = () |
| Grey-Red |
IDC/FLK50 (47) = () |
| Grey-Orange |
IDC/FLK50 (48) = () |
| Grey-Yellow |
IDC/FLK50 (49) = () |
| Grey-Green |
IDC/FLK50 (50) = () |
| connection 1 |
| Connection Mode |
single line |
| stripping length (sheath) |
150mm |
| Bits |
50 |
| Considerations |
Cables marked and fitted with sleeves |
| Connection 2 |
| connection meets standards |
IEC 60603-13 (compliance) |
| Connection Mode |
IDC/FLK Hole Connectors |
