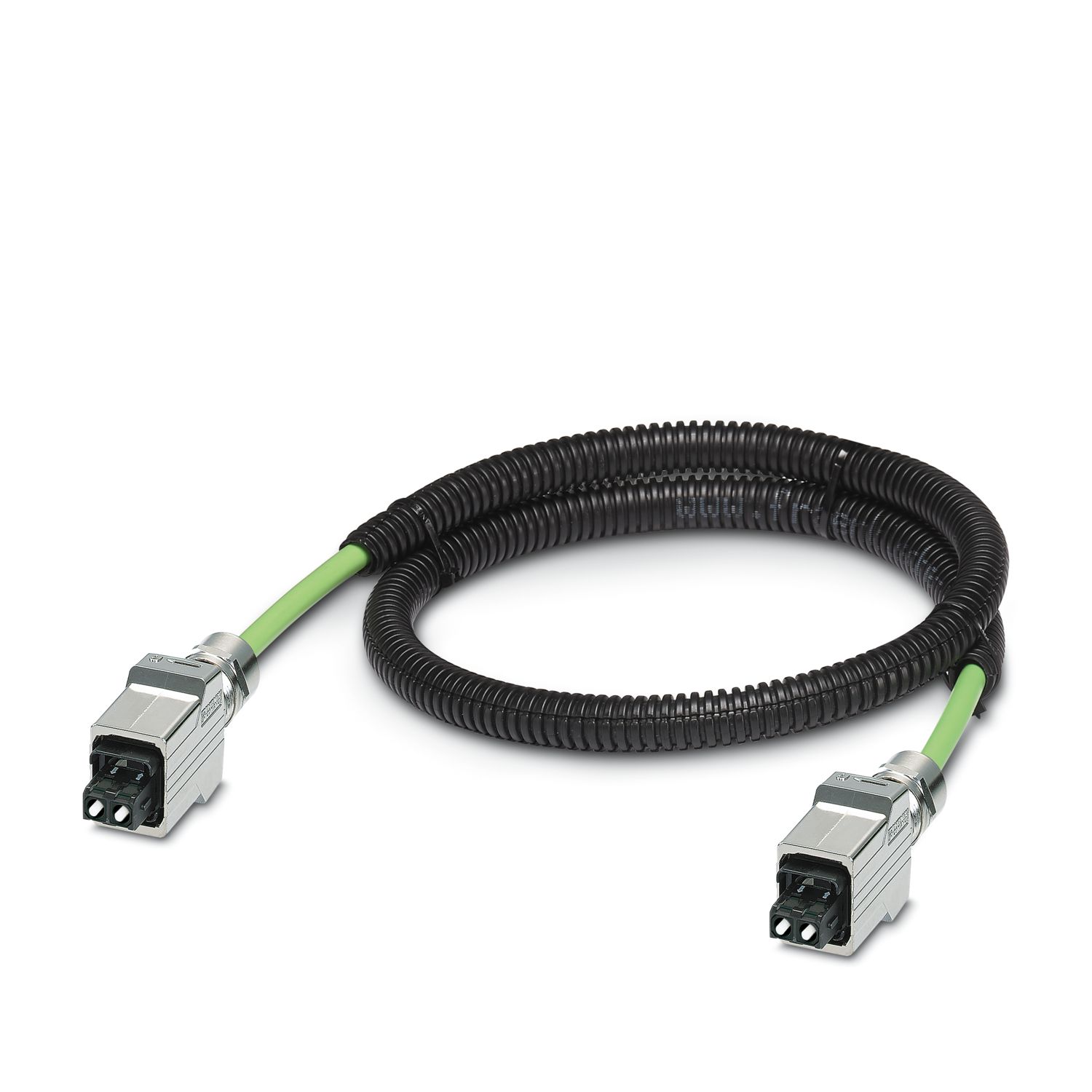

Phoenix FOC-SJ:14-SJ:14-HB02/3,5PR L04-FO tail cable 1171602, prefabricated optical cable, PROFINET cable type B, 200/230 & micro; M PCF fiber, SC-RJ/IP67 push-pull metal shell to BFOC(ST)/IP20,PVC outer sheath, halogen-free, ozone-resistant and UV-resistant, installed in cable duct for indoor fixed installation, length: 3.5 m
| Product Type |
Pre-installed data cable |
| Application |
standard |
| Sensor Type |
Ethernet |
| Bits |
2 |
| transmission medium |
PCF fiber |
| transmission speed |
100 Mbps |
| transmission rate |
100 Mbps |
| mechanical characteristics |
| cold head diameter |
2.50mm |
| connection 1 |
| type |
plug straight head push-pull type model 14 |
| protection level |
IP65/IP67 (Push-Pull ADVANCE) |
| Connection 2 |
| type |
plug straight head push-pull type model 14 |
| Identification Materials |
Zinc Die Casting (Nickel Plated) |
| protection level |
IP65/IP67 |
| Cable Length |
3.50 m |
| Cable Weight |
45 kg/km |
| Cable outer diameter |
8.00mm ± 0.5mm |
| outer sheath, material |
TPE-U |
| outer sheath, color |
Orange |
| thickness, outer sheath |
1mm |
| wire structure signal line |
500.00 µm ±30 µm |
| thickness, insulation |
approx. 0.60mm |
| wire diameter, including insulation |
2.9mm ± 0.1mm |
| single line, color |
red, green |
| minimum bending radius, fixed mounting |
65mm |
| minimum bending radius, mobile installation |
65mm |
| Halogen-free |
conforming to IEC 60754-2 |
| oil resistance |
DIN VDE 0473,T. 811-2-1 |
| Other protective functions |
against ozone and UV radiation |
| environmental conditions |
| protection level |
IP67 |
