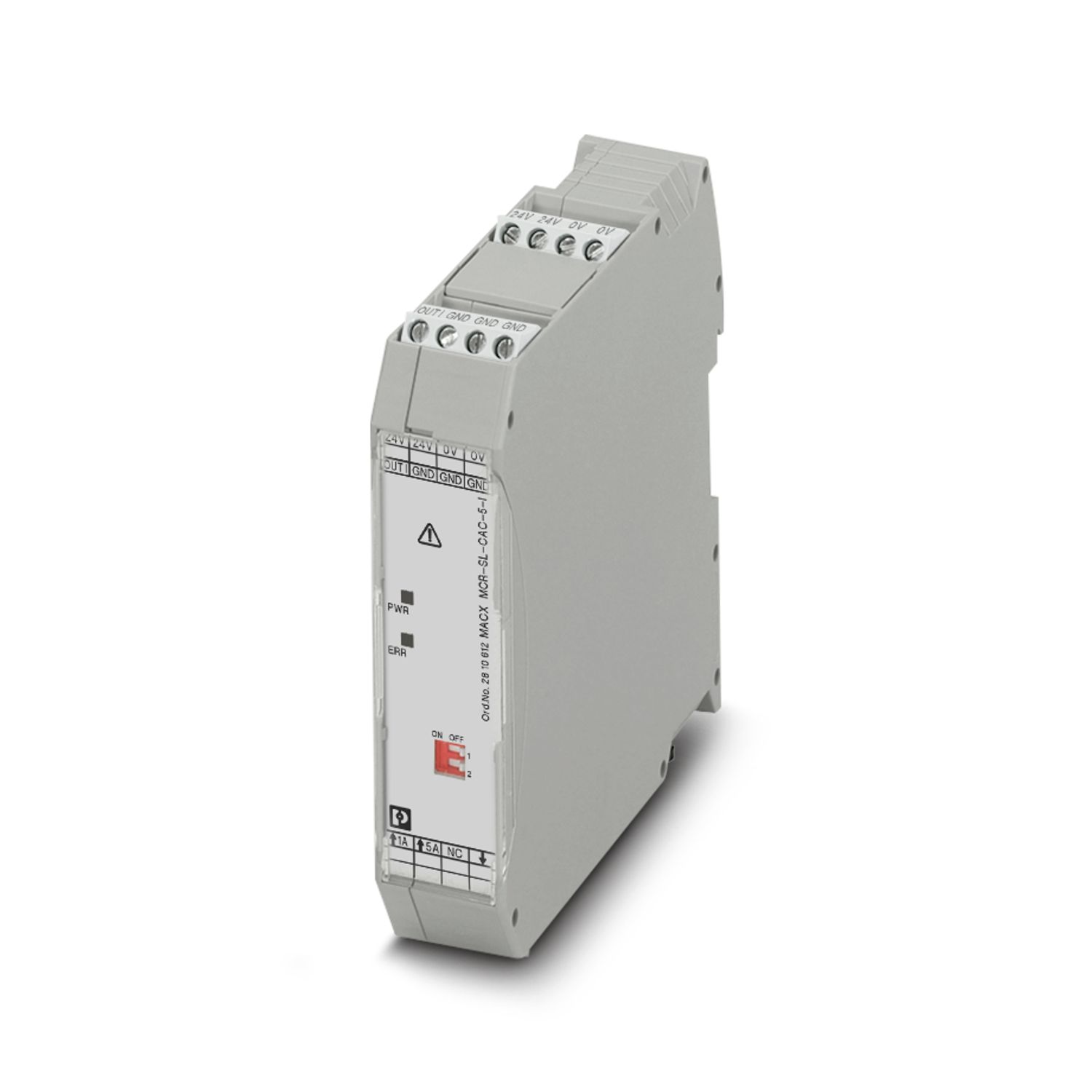

Phoenix MACX MCR-SL-CAC-12-I-UP-current transmitter 2810638, current measurement transmitter, applicable current 5 A and 12 A AC, output signal 0...20mA or 4...20mA, can be configured by DIP switch, and the working status can be displayed by LED
Product Type
Current transmitter
insulation characteristics
Overvoltage Category
III
pollution level
2
Electrical characteristics
rated conditions
< 0.9W (24V DC)
< 3.4W (230V AC)
protection circuit
surge protection; 35V suppressor diode
step response (10-90%)
≤ 300 ms
200 ms
maximum temperature coefficient
< 0.02 %/K
temperature coefficient, typical
< 0.015 %/K
Maximum transmission error
≤ 0.5 % (in rated state, within rated range)
prevents polarity reversal
is
Rated insulation voltage
300V AC (ground)
electrically isolated input/output
Test Voltage
4 kV AC (50 Hz, 60 s)
galvanically isolated output/power
Test Voltage
2 kV AC (50 Hz, 60 s)
power supply
Supply Voltage Range
19.2V AC/DC ... 253V AC/DC
Maximum current consumption
< 33 mA (24V DC)
power consumption
< 0.8W (24V DC)
input data
measurement
configurable/programmable
via DIP switch
Input current range
0 A AC ... 5 A AC (configurable)
0 A AC ... 12 A AC (configurable)
voltage input signal
≤ 300V AC
input impedance
< 50 mΩ
Overload
1xIN (ongoing)
surge strength
8 x IN (1s)
Rated frequency fN
50Hz
Frequency measurement range
45Hz ... 65Hz
Curve Type
Sine
output data
signals: current
configurable/programmable
via DIP switch
No-load voltage
15V
current output signal
0 mA ... 20 mA (configurable)
4 mA ... 20 mA (configurable)
Maximum current output signal
25 mA
load/output load current output
< 500 Ω (20 mA)
fluctuation
< 10 mVSS (500 Ω / 20 mA)
Status Display
Red LED (fault), Green LED (ready)
connection data
Connection Mode
screw connection
stripping length
8mm
thread
M3
Rigid conductor cross section
0.2 mm² ... 2.5 mm²
Flexible Wire Cross Section
0.2 mm² ... 2.5 mm²
Attachable Guide Cross Section AWG
24 ... 14
Tightening torque
0.5 Nm ... 0.6 Nm
